OTT SVR 100 is a simple, non-contact, compact surface water velocity radar sensor. Designed for measuring flow in open channels and rivers where reliable velocity data is required continuously, during floods or periods of high concentrations of suspended sediments.

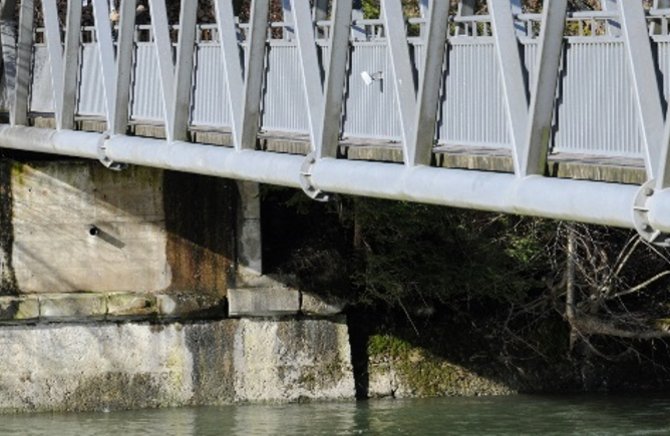

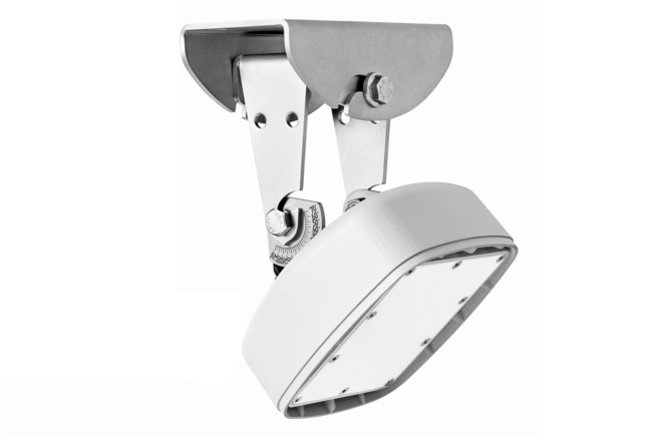

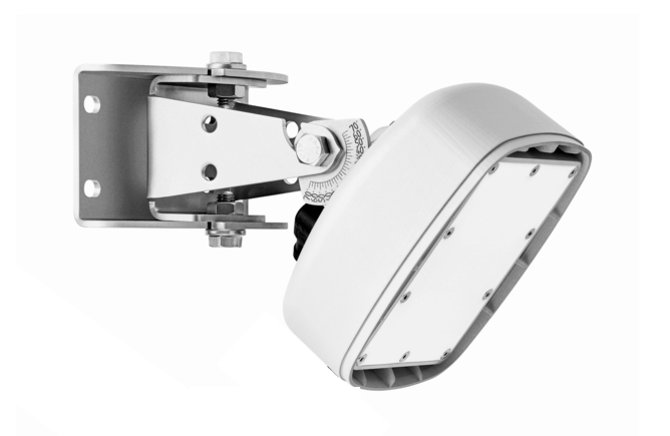

The sensor is mounted above the water surface, away from floating debris using a flexible bracket for vertical or horizontal installation. Velocity measurements and sensor status information from the integrated vibration and tilt sensor is available via SDI-12 over RS-485 and Modbus. It is also compatible with OTT Prodis 2 software for system calibration.

Usage Type: Fixed installation
Product Highlights: Identify data influenced by sensor movement (e.g., wind, traffic) using meta data from integrated vibration and tilt sensors
Application fields: Non-contact surface velocity radar
Internal data logger: No
Measurement range: 0.08 ... 15 m/s (0.26 … 49 ft./s)
