OTT RLS - Radar Level Sensor

OTT RLS - Radar Level Sensor

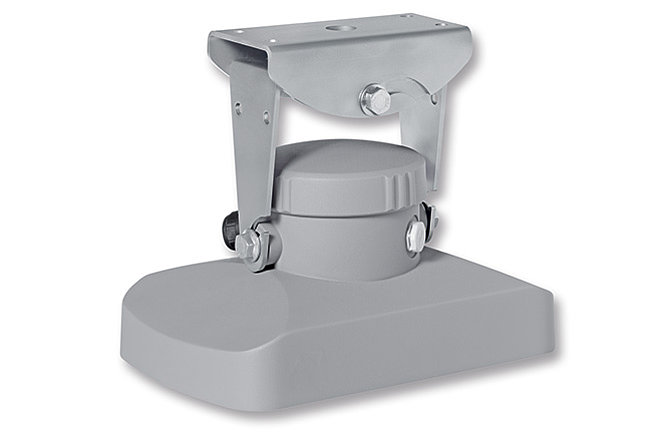

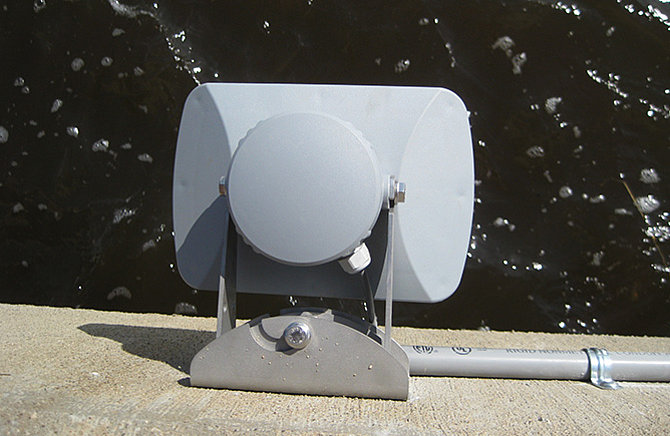

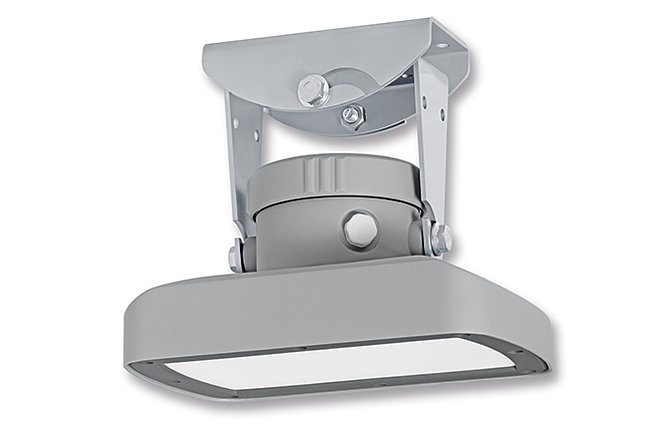

The OTT RLS is a non-contact radar level sensor with pulse radar technology. The OTT RLS offers a large measurement range with a small blanking distance and narrow beam width and it easily connects to most dataloggers. The RLS has extremely low power consumption and is ideal for remote or solar powered sites.

  • Surface water
  • Water level / distance to water
  • Non-contact pulse radar

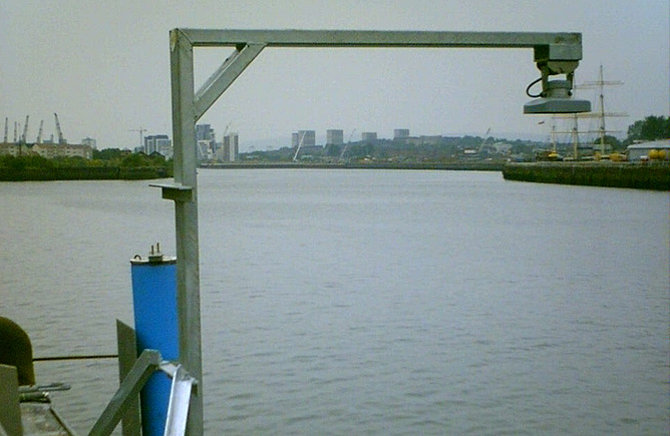

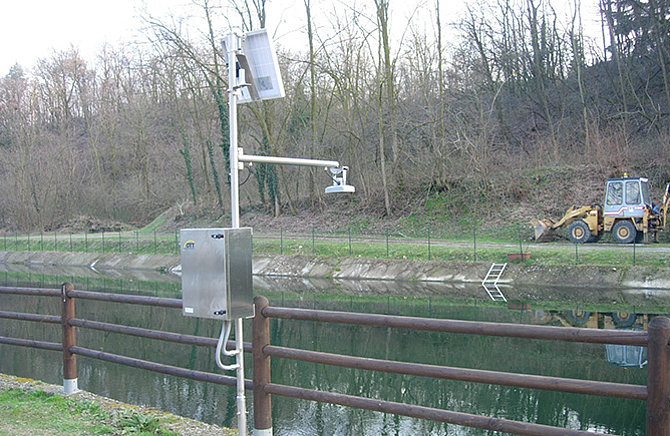

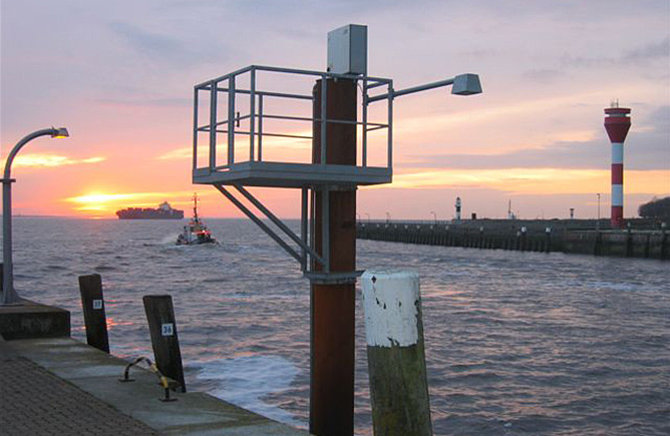

  • Measures water level or depth to water from a bridge, pier or mounting arm
  • 0.4 … 35 m
  • 0.8 … 2 m: ± 10 mm; 2 … 30 m: ± 3 mm; 30 … 35 m: ± 10 mm
  • No
  • SDI-12, RS-485 (using SDI-12), or 4 ...20 mA
