Instrumentation

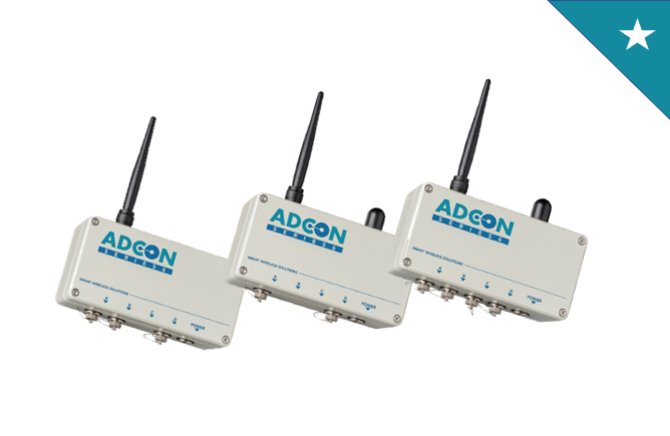

The ADCON SERIES 6 RTU is the new generation of remote-controlled, ultra low-power dataloggers for agricultural, meteorological and hydrological applications at a competitive price.
The series differentiates from its predecessors by a self-monitoring battery, a larger memory for up to 2 million values and wireless communication via Bluetooth.
Further advantages are the data encryption option to ensure data safety, the convenient firmware update over the air as well as the future-proof design for integration in IoT networks and existing state-of-the-art communication technologies.
The ADCON SERIES 6 RTU is available as 2G/3G or 4G/LTE version and is equipped with a fast 32-bit-CPU.
Like all ADCON RTUs the SERIES 6 RTUs are fully integrated units: datalogger, cell modem and battery all together, fit into an extremely compact and robust aluminum case. In contrast to standard logger solutions the SERIES 6 RTUs does not need a separate enclosure, lots of wires to modem, battery and antenna, complicated setup to make the logger talk to the modem, etc. – the RTUs are truly plug and play. Connect the sensors and your solar panel by simply screwing in a connector, insert your SIM card, program your PIN code (for security reasons) and the IP address of your A850 Telemetry Gateway – ready to go!

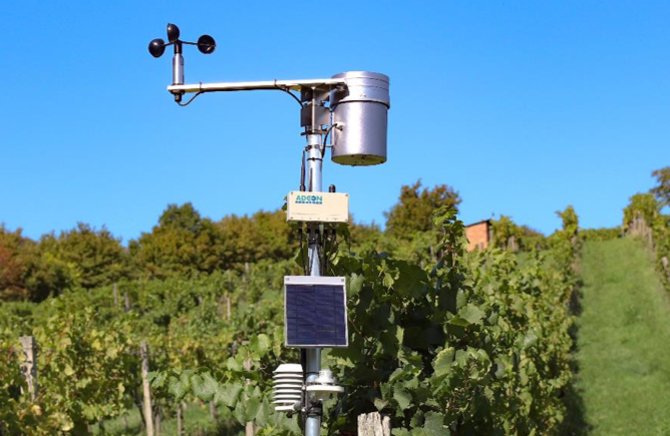

In combination with ADCON’s ultra-low-power sensors the SERIES 6 RTUs also runs off an extra small solar panel, about the size of a sheet of paper in DIN A5. That not only reduces wind pressure a lot, it allows for a light installation and it usually keeps thieves away – it’s just too small to be attractive.
Product performance overview by applications:

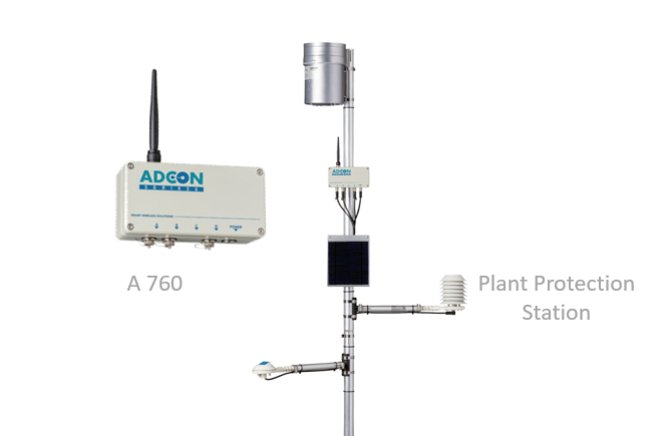

RTU A760
Disease +++ Climate/Research o Irrigation +++ Water Mgmt +++ Flood Waring +++

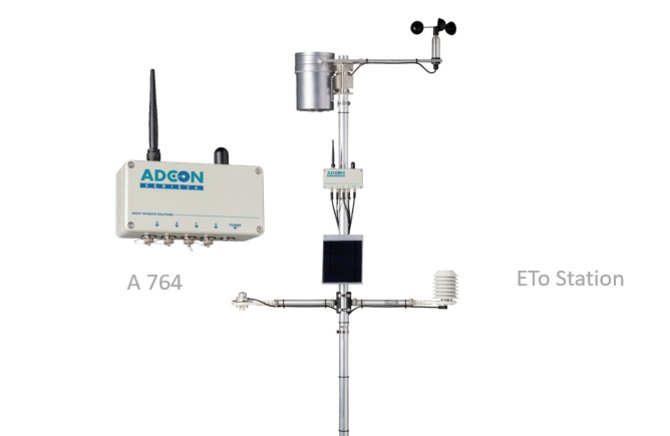

RTUI A764
Disease +++++ Climate/Research +++++ Irrigation +++++ Water Mgmt +++++ Flood Waring +++++

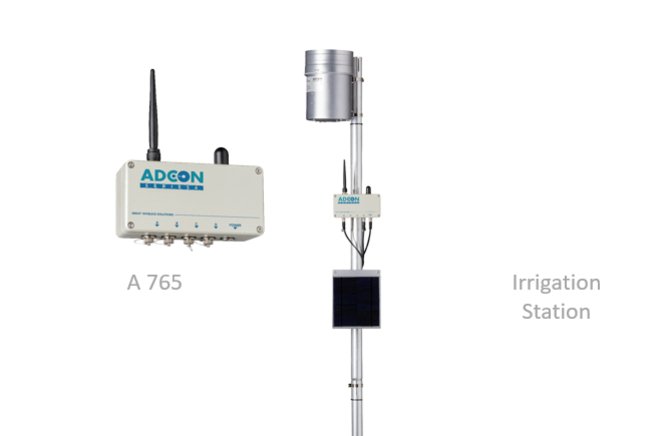

RTU A765
Disease o Climate/Research o Irrigation ++++ Water Mgmt ++++ Flood Waring ++++
+++++ = perfect performation for application
+++ = good performanve for application
o = not suitable for application
